Table 3

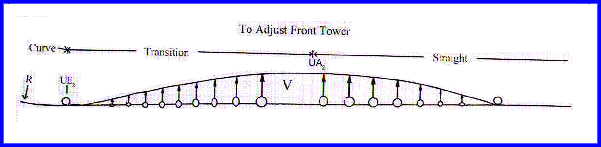

V- Values Adjustment Table (Levelling the Curve)

Adjust after UE2												V-VALUE ADJUSTMENT	Adjust after UA2
Sleeper	0	11	14	16	17	18	20	21	23	25	32		0	11	14	16	17	18	20	21	23	25	32
Metres	0	6.6	8.4	9.6	10.6	11.5	12.4	13.2	14.2	15.5	20		0	6.6	8.4	9.6	10.6	11.5	12.4	13.2	14.2	15.5	20
Vm	0.0	0.1	0.2	0.3	0.4	0.5	0.6	0.7	0.8	0.9	1.0		1.0	0.9	0.8	0.7	0.6	0.5	0.4	0.3	0.2	0.1	0.0
2	0	0	0	1	1	1	1	1	2	2	2		2	2	2	1	1	1	1	1	0	0	0
4	0	0	1	1	2	2	2	3	3	4	4		4	4	3	3	2	2	2	1	1	0	0
6	0	1	1	2	2	3	4	4	5	5	6		6	5	5	4	4	3	2	2	1	1	0
8	0	1	2	2	3	4	5	6	6	7	8		8	7	6	6	5	4	3	2	2	1	0
10	0	1	2	3	4	5	6	7	8	9	10		10	9	8	7	6	5	4	3	2	1	0
12	0	1	2	4	5	6	7	8	10	11	12		12	11	10	8	7	6	5	4	2	1	0
14	0	1	3	4	6	7	8	10	11	13	14		14	13	11	10	8	7	6	4	3	1	0
16	0	2	3	5	6	8	10	12	13	14	16		16	14	13	12	10	8	6	5	3	2	0
18	0	2	4	5	7	9	11	13	14	16	18		18	16	14	13	11	9	7	5	4	2	0
20	0	2	4	6	8	10	12	14	16	18	20		20	18	16	14	12	10	8	6	4	2	0
22	0	2	4	7	9	11	13	15	18	20	22		22	20	18	15	13	11	9	7	4	2	0
24	0	2	5	7	10	12	14	17	19	22	24		24	22	19	17	14	12	10	7	5	2	0
26	0	3	5	8	10	13	16	18	21	23	26		26	23	21	18	16	13	10	8	5	3	0
28	0	3	6	8	11	14	17	20	22	25	28		28	25	22	20	17	14	11	8	6	3	0
30	0	3	6	9	12	15	18	21	24	27	30		30	27	24	21	18	15	12	9	6	3	0
32	0	3	6	10	13	16	19	23	26	29	32		32	29	26	23	19	16	13	10	6	3	0
34	0	3	7	10	14	17	20	24	27	31	34		34	31	27	24	20	17	14	10	7	3	0
36	0	4	7	11	14	18	22	25	29	32	36		36	32	29	25	22	18	14	11	7	4	0
38	0	4	8	11	15	19	23	27	30	34	38		38	34	30	27	23	19	15	11	8	4	0
40	0	4	8	12	16	20	24	28	32	36	40		40	36	32	28	24	20	16	12	8	4	0
42	0	4	8	13	17	21	25	28	34	38	42		42	38	34	29	25	21	17	13	8	4	0
44	0	4	9	13	18	22	26	31	35	40	44		44	40	35	31	26	22	18	13	9	4	0
46	0	5	9	14	18	23	28	32	37	41	46		46	41	37	32	28	23	18	14	9	5	0
48	0	5	9	14	19	24	29	34	38	43	48		48	43	38	34	29	24	19	14	10	5	0
50	0	5	10	15	20	25	30	35	40	45	50		50	45	40	35	30	25	20	15	10	5	0
