Table 2

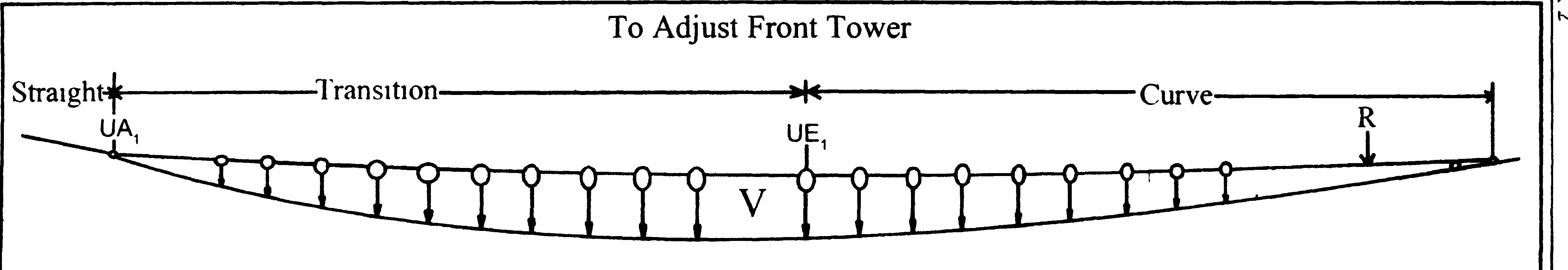

V- Values Adjustment Table (Approaching the Curve)

Adjust after UA1 V-VALUE ADJUSTMENT Adjust after UE1
Sleeper 0 11 14 16 17 18 20 21 23 25 32 0 11 14 16 17 18 20 21 23 25 32
Metres 0 6.6 8.4 9.6 10.6 11.5 12.4 13.2 14.2 15.5 20 0 6.6 8.4 9.6 10.6 11.5 12.4 13.2 14.2 15.5 20
Vm 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.0 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0.0
2 0 0 0 1 1 1 1 1 2 2 2 2 2 2 1 1 1 1 1 0 0 0
4 0 0 1 1 2 2 2 3 3 4 4 4 4 3 3 2 2 2 1 1 0 0
6 0 1 1 2 2 3 4 4 5 5 6 6 5 5 4 4 3 2 2 1 1 0
8 0 1 2 2 3 4 5 6 6 7 8 8 7 6 6 5 4 3 2 2 1 0
10 0 1 2 3 4 5 6 7 8 9 10 10 9 8 7 6 5 4 3 2 1 0
12 0 1 2 4 5 6 7 8 10 11 12 12 11 10 8 7 6 5 4 2 1 0
14 0 1 3 4 6 7 8 10 11 13 14 14 13 11 10 8 7 6 4 3 1 0
16 0 2 3 5 6 8 10 12 13 14 16 16 14 13 12 10 8 6 5 3 2 0
18 0 2 4 5 7 9 11 13 14 16 18 18 16 14 13 11 9 7 5 4 2 0
20 0 2 4 6 8 10 12 14 16 18 20 20 18 16 14 12 10 8 6 4 2 0
22 0 2 4 7 9 11 13 15 18 20 22 22 20 18 15 13 11 9 7 4 2 0
24 0 2 5 7 10 12 14 17 19 22 24 24 22 19 17 14 12 10 7 5 2 0
26 0 3 5 8 10 13 16 18 21 23 26 26 23 21 18 16 13 10 8 5 3 0
28 0 3 6 8 11 14 17 20 22 25 28 28 25 22 20 17 14 11 8 6 3 0
30 0 3 6 9 12 15 18 21 24 27 30 30 27 24 21 18 15 12 9 6 3 0
32 0 3 6 10 13 16 19 23 26 29 32 32 29 26 23 19 16 13 10 6 3 0
34 0 3 7 10 14 17 20 24 27 31 34 34 31 27 24 20 17 14 10 7 3 0
36 0 4 7 11 14 18 22 25 29 32 36 36 32 29 25 22 18 14 11 7 4 0
38 0 4 8 11 15 19 23 27 30 34 38 38 34 30 27 23 19 15 11 8 4 0
40 0 4 8 12 16 20 24 28 32 36 40 40 36 32 28 24 20 16 12 8 4 0
42 0 4 8 13 17 21 25 28 34 38 42 42 38 34 29 25 21 17 13 8 4 0
44 0 4 9 13 18 22 26 31 35 40 44 44 40 35 31 26 22 18 13 9 4 0
46 0 5 9 14 18 23 28 32 37 41 46 46 41 37 32 28 23 18 14 9 5 0
48 0 5 9 14 19 24 29 34 38 43 48 48 43 38 34 29 24 19 14 10 5 0
50 0 5 10 15 20 25 30 35 40 45 50 50 45 40 35 30 25 20 15 10 5 0
